Lesson 5 Accessing a form’s property sheet
Objective Know the ways to view a form’s properties.

Different ways to Access Form's Property Sheet

In Microsoft Access, when working in Design View, there are several ways to access a form's properties. Here's a breakdown of the different methods:
  1. Using the Property Sheet Panel

    The Property Sheet panel is the primary interface for viewing and modifying a form's properties in Design View.

    • Steps to Access:
      1. Open the form in Design View.
      2. On the Design tab in the ribbon, click Property Sheet (if it isn't already displayed).
      3. Ensure the form itself (not a specific control) is selected by:
        • Clicking the small square in the upper-left corner of the form (where the rulers intersect).
        • OR selecting Form in the Selection Type dropdown of the Property Sheet.
  2. Right-Click on the Form Selector

    The Form Selector is the small square located at the intersection of the vertical and horizontal rulers in Design View.

    • Steps to Access:
      1. Right-click the Form Selector.
      2. Select Properties from the context menu to open the Property Sheet for the form.
  3. Context Menu for Any Blank Area

    You can access the form's properties by right-clicking on any blank area of the form (outside of any controls).

    • Steps to Access:
      1. Right-click a blank area on the form (not inside a control or section).
      2. Select Properties from the context menu.
  4. Ribbon Menu - Design Tab

    You can directly open the Property Sheet from the ribbon.

    • Steps to Access:
      1. In Design View, go to the Design Tab in the ribbon.
      2. Click Property Sheet.
      3. Make sure "Form" is selected in the dropdown at the top of the Property Sheet.
  5. Keyboard Shortcut

    A quick way to open the Property Sheet is by using a keyboard shortcut.

    • Steps to Access:
      1. Press F4 on your keyboard.
      2. The Property Sheet will open, and you can view the properties of the form or any selected object.
  6. Using the Selection Type Dropdown

    The Selection Type Dropdown in the Property Sheet allows you to switch between the form and other controls.

    • Steps to Access:
      1. Open the Property Sheet (using any method above).
      2. Use the Selection Type Dropdown (top of the Property Sheet) to select "Form."
Summary The main ways to view a form's properties in Design View include:
  1. The Property Sheet Panel.
  2. Right-clicking the Form Selector.
  3. Right-clicking a blank area of the form.
  4. Using the Design tab in the ribbon.
  5. Pressing the F4 shortcut key.
  6. Navigating via the Selection Type Dropdown in the Property Sheet.
These methods offer flexibility depending on your workflow and preferences.
One of the features I like best about Access is that it is so customizable. Each form can be customized to perform whatever task is needed. As with tables, fields, and queries, forms have properties that affect different aspects of the form. These properties are contained on a form’s property sheet.

Opening the Property Sheet

To change a form's properties, you need to use the form's property sheet. To open a property for a form, click the Properties toolbar button

Properties toolbar button
Properties toolbar button

An alternative way to get to the property is to choose Properties from the View menu.
Once the property sheet is opened, you will see four tabs on it: Format, Data, Other, and All. On the top of the property sheet should be the word Form. This will tell you that the property sheet is indeed pointing at the form's properties, rather than at section or control properties. There are two ways to make sure you are pointing at the form's properties.

Pointing at the form’s properties

The first way to point to a form’s property with the property sheet open is to click on the Form Selector button
Form Selector button
Form Selector button

located in the top left corner of the form itself. The other is to pick the word Form from the drop-down Object list
Bottom, which is the first control on the Form Design toolbar.
Bottom, which is the first control on the Form Design toolbar.

To see where all these objects just mentioned fall into play, locate them on the MouseOver below.

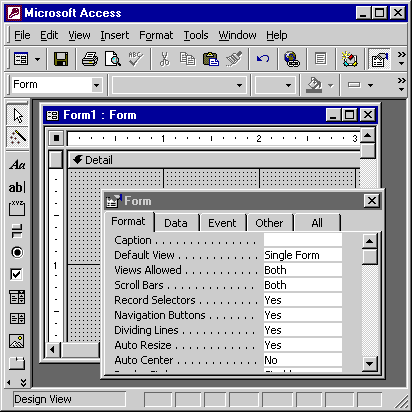

Pointing to Form Properties

Access Form Properties
The uploaded image provides a clear example of how to view and navigate the Form Properties window in Microsoft Access Design View. Below is an analysis of the labels and elements in the image:
Labels Highlighted in the Image
  1. Ribbon Button to Open the Property Sheet
    • Location: Top-right corner of the ribbon.
    • Label: Property Sheet
    • Function: Clicking this button opens the Property Sheet for the currently selected form, section, or control.
  2. Selection Type Dropdown
    • Location: Near the top-left corner of the form design window.
    • Label: Form
    • Function: Allows the user to select the object (e.g., Form, controls, or sections) whose properties they want to view or edit.
  3. Form Selector
    • Location: Small box at the intersection of the vertical and horizontal rulers in the form design window.
    • Function: Clicking this selects the entire form, making its properties visible in the Property Sheet.
  4. Format Tab
    • Location: Tab in the Property Sheet.
    • Function: Contains properties related to the appearance of the form (e.g., Caption, Scroll Bars, Navigation Buttons).
  5. Data Tab
    • Location: Tab in the Property Sheet.
    • Function: Contains properties related to the data source of the form (e.g., Record Source, Filter, Order By).
  6. Event Tab
    • Location: Tab in the Property Sheet.
    • Function: Contains properties related to event-handling for the form (e.g., On Open, On Load, On Click).
  7. Other Tab
    • Location: Tab in the Property Sheet.
    • Function: Contains miscellaneous properties (e.g., Pop Up, Modal, Shortcut Menu).
  8. All Tab
    • Location: Tab in the Property Sheet.
    • Function: Displays all properties (from the Format, Data, Event, and Other tabs) in one consolidated view.
Summary of Key Labels The key labels on the Microsoft Access form in the image are:
  1. Property Sheet (Ribbon Button)
  2. Form (Selection Dropdown)
  3. Form Selector (Intersection Box)
  4. Format Tab
  5. Data Tab
  6. Event Tab
  7. Other Tab
  8. All Tab
These tools and labels help users customize and configure form properties effectively in Design View.
Access Form Properties

1) Form Selector Clicking here moves the property sheet’s focus to the form’s properties.
2) Object list Pick Form from the drop-down list that opens in to move the property sheet’s focus to the form’s properties.
3)Properties toolbar button Toggles the property sheet being opened or closed.
4) Format tab
Contains properties that affect the formatting of an object.
5) Data tab Contains properties that allow you to specify record sources for forms and reports and control sources for controls.
6) Event tab Allows you to attach macros for different events that occur.
7)Other tab Miscellaneous properties that don’t fall under the other tabs.
8) All tab All the other nonevent tabs combined in one list.


In the next lesson, you will learn how to modify various properties of a form.

Working with Access Forms - Quiz

Click the Quiz link below to answer a few questions about working with forms.
Working with Access Forms - Quiz

Accessing Forms Property Sheet - Exercise

Click the Exercise link below to practice opening a form’s property sheet and making it point to the form's properties.
Accessing Forms Property Sheet - Exercise
