Recover or Rebuild an RMAN Recovery Catalog in Oracle 26ai

An RMAN recovery catalog is a database schema that stores backup and recovery metadata for one or more registered target databases. The schema can contain history that is older than the reusable records in a target control file, along with catalog-only objects such as local and global stored RMAN scripts. Losing the recovery catalog can therefore remove information that is not available from any individual target database.

Oracle AI Database 26ai still supports creating and repopulating a recovery catalog, but the word re-create can describe several very different operations. Restoring and recovering the catalog database preserves the most information. Importing a current Data Pump export can restore the schema to the export's capture time. Creating a new catalog and repopulating it from surviving control files and disk backups is a worst-case reconstruction that may be incomplete. Dropping a catalog is an intentional destructive operation, not a recovery method.

The first task after catalog loss is therefore to inventory what survived. Do not issue DROP CATALOG, create a replacement schema, or overwrite recoverable files until the physical backups, archived redo logs, logical exports, control-file copies, target control files, and other catalogs have been evaluated.

Identify what was lost

The recovery-catalog database is the Oracle database containing the catalog-owner schema. The base recovery catalog is the collection of tables, views, packages, and other RMAN objects created in that schema by CREATE CATALOG. Damage can affect the entire database, only the catalog tablespace or schema, or a subset of catalog objects.

The target database control file is also an RMAN repository. It may retain current backup records, configurations, incarnations, and database structure information even when the recovery catalog is lost. Its record window is finite, however, and it does not store recovery-catalog scripts. Consequently, resynchronizing a new catalog from a target control file cannot be assumed to reproduce the lost catalog completely.

Choose a recovery path from the surviving assets

These are alternative paths, not a single procedure. A physical database recovery and a partial reconstruction do not provide equivalent results. The chosen path must preserve the longest useful metadata history and catalog-only objects required by the recovery strategy.

Protect the catalog before a failure occurs

The safest catalog reconstruction is the one that never becomes necessary. The recovery-catalog database is an ordinary Oracle database with an unusually important metadata role. Include it in the same documented backup, recovery, monitoring, and restore-testing discipline applied to other critical databases.

• Place the catalog in a database separate from every target database it protects.
• Avoid sharing the target's disk, host, storage system, or site failure domain where practical.
• Operate the catalog database in ARCHIVELOG mode when point-in-time recovery is required.
• Back up the catalog database at least as frequently as the protected-database workflow requires.
• Use the catalog database's control-file repository by starting its RMAN backup with NOCATALOG.
• Enable control-file autobackups for the catalog database.
• Use a retention policy and separate backup media that satisfy the recovery objectives.
• Test recovery of the server parameter file, control file, data files, and archived redo logs.
• Create periodic Data Pump exports of the catalog schema when logical protection is part of the design.

Using the catalog itself as the repository for its own backup creates a circular dependency. A NOCATALOG backup instead records the catalog database's backup metadata in its control file. Protect that control file with autobackups and retain the information needed to locate those autobackups during a disaster.

A Data Pump export is useful supplemental protection, particularly for schema-level damage or migration to another prepared database. It is not a substitute for tested physical database backups because it does not provide the same complete database recovery path.

Preferred method: recover the catalog database

When usable physical backups and the required redo survive, restore and recover the recovery-catalog database through the normal Oracle database recovery process. Depending on the failure, this may involve restoring its server parameter file or control file from an autobackup, restoring the affected data files, and applying archived redo logs.

There is no safe universal command script for every catalog failure. Loss of one catalog tablespace, loss of the entire host, corruption detected after several backups, and loss of both the control file and server parameter file require different starting states and recovery sequences. Use the current Oracle disaster-recovery procedure for the exact failure, backup layout, incarnation, encryption configuration, and recovery objective.

After the database opens, verify more than connection success. Confirm that the intended catalog owner can connect, registered targets appear, stored scripts are present, historical backup records cover the expected period, and target connections can resynchronize. Compare the result with external inventories and recent operational records before declaring the catalog fully recovered.

Supplemental method: restore a logical export

A current Data Pump export of the recovery-catalog schema can be imported into another properly prepared catalog database. The imported contents represent the catalog at the export's capture time. RMAN activity that occurred afterward may be restored from current target control files through normal registration or resynchronization, while supported disk files whose records are missing may be recataloged.

Data Pump Import and the RMAN IMPORT CATALOG command are different tools:

• Data Pump Import imports database objects from a previous schema export.
• RMAN IMPORT CATALOG moves or merges metadata from an existing source recovery catalog into a destination catalog.

IMPORT CATALOG cannot reconstruct a destroyed source catalog from nothing. The source and destination catalog versions must meet the documented compatibility requirements, and a target database cannot remain registered in both catalogs during the import. Use this command for a controlled catalog move or consolidation, not as a synonym for importing a Data Pump dump file.

Prepare a replacement catalog with current requirements

If normal physical recovery and logical restoration are impossible, prepare a replacement catalog database and dedicated owner. Do not reuse the Oracle8 procedure that grants generic CONNECT and RESOURCE roles or invokes catrman.sql.

Current preparation includes selecting a catalog database separate from its targets, creating a dedicated owner such as rco with an appropriate default tablespace, temporary tablespace, and quota, and granting RECOVERY_CATALOG_OWNER. Oracle's current procedure also uses dbmsrmansys.sql to manage the additional catalog-owner privileges. The optional dbmsrmanvpc.sql procedure applies only when the virtual private catalog design requires the VPD model.

The Oracle 26ai guide requires the recovery-catalog database to use Enterprise Edition and directs administrators to enable Oracle Partitioning before creating the catalog. Confirm edition, licensing, multitenant placement, release-update compatibility, and privileges against the current documentation for the deployment.

After the owner is prepared, connect RMAN to the catalog database as that owner and create the base catalog:

CONNECT CATALOG rco@catpdb;
CREATE CATALOG;

If the catalog must use an explicitly prepared tablespace, specify it when creating the objects:

CREATE CATALOG TABLESPACE cat_tbs;

Let RMAN request the catalog-owner credential through the approved authentication method. Do not place passwords in shell commands, RMAN command files, screenshots, or logs.

Register targets and reconstruct surviving metadata

Connect to one mounted or open target database and the new catalog, then register the target:

CONNECT TARGET "backup_admin@prodcdb AS SYSBACKUP";
CONNECT CATALOG rco@catpdb;
REGISTER DATABASE;

REGISTER DATABASE obtains the required information from the connected target and performs a full resynchronization during registration. Do not add an immediate unconditional RESYNC CATALOG as though it were another required registration step. Repeat the registration procedure for each target database not already represented in the replacement catalog, while observing DBID and Data Guard requirements.

Registration can transfer only metadata that survives in the target control file. Records that aged out before the loss will not reappear simply because the target was registered again.

Recover records from a control-file copy

If the current target control file was re-created and a useful older copy survives, the current Oracle 26ai syntax is:

RESYNC CATALOG FROM CONTROLFILECOPY '/u03/rman/cfile_prod.ctl';

This operation updates the current target control file and the recovery catalog with RMAN repository metadata from the specified control-file copy. It does not restore the catalog database, and this form does not update physical schema information. Verify that the copy belongs to the correct target and incarnation before using it.

An ordinary RESYNC CATALOG updates the connected recovery catalog from the current target control file. It is appropriate when the catalog missed operations or structural changes, but it cannot recover records that are absent from every surviving control file and copy.

Catalog surviving disk backups

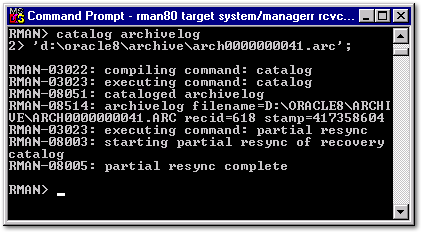

Lesson 2 introduced the CATALOG command. During reconstruction, use it to record supported backup pieces, data file copies, control-file copies, and archived redo logs that remain on accessible disk but are missing from the new repository. When the precise handles are known, specific commands limit the scope:

CATALOG BACKUPPIECE '/u03/rman/prod_bkp_01.bkp';
CATALOG CONTROLFILECOPY '/u03/rman/control01.ctl';
CATALOG DATAFILECOPY '/u03/rman/users01.dbf';
CATALOG ARCHIVELOG '/u03/rman/arch/1_731_1234567890.arc';

When several supported files exist beneath a reviewed location, use a strict path prefix and keep the default confirmation prompt:

CATALOG START WITH '/u03/rman/';

Do not add NOPROMPT until the prefix and candidate files have been reviewed. Do not run CATALOG and BACKUP concurrently against the same disk location or storage media. For a multi-piece disk backup set, every required physical piece must be cataloged before the set is usable. Ordinary CATALOG does not reintroduce backup pieces that exist only on an SBT device.

Understand the limits of partial reconstruction

These limitations explain why Oracle describes the fallback as partial reconstruction. A newly created catalog may connect successfully and still lack the older metadata, scripts, configurations, and retention decisions required by the production recovery plan.

DROP CATALOG is not a recovery shortcut

Warning: DROP CATALOG removes the base-catalog objects and their RMAN metadata for every target registered in that catalog. Backups recorded only in the catalog and not in a target control file are no longer usable through the lost metadata. Use this operation only for an approved decommissioning or intentional reset after catalog-only history has been inventoried and declared expendable.

The command requires an open catalog database and a connection as the catalog owner. A target connection is not required by the command reference. RMAN normally asks for confirmation by requiring the command a second time:

CONNECT CATALOG rco@catpdb;
DROP CATALOG;
DROP CATALOG;

The NOPROMPT option bypasses this confirmation and should not be the primary production example. Dropping a base catalog removes the objects created by CREATE CATALOG, but it does not remove other objects the same schema owner may own. When connected to a virtual private catalog, DROP CATALOG removes its security policies rather than deleting the base catalog. To remove one target from a shared catalog, use the documented unregistering workflow instead of dropping the catalog.

UPGRADE CATALOG is also not a recovery command. It updates an existing base catalog to the schema version required by the RMAN client. Oracle 26ai provides additional controls for blocking connections and maintenance-mode monitoring during upgrades, but those controls do not restore a lost catalog. A catalog newly created by the current RMAN client does not need a mechanical upgrade step.

Verify the recovered or reconstructed catalog

1. Confirm that the catalog database opens and that the intended catalog owner can connect.
2. List registered targets and verify each DBID and DB_UNIQUE_NAME association.
3. Run focused REPORT SCHEMA, LIST BACKUP SUMMARY, and incarnation checks for each target.
4. Compare the available metadata period with the expected control-file window, catalog backup, or Data Pump export time.
5. Verify local and global stored scripts against external version-controlled copies.
6. Use appropriate CROSSCHECK operations to reconcile recorded files with accessible storage.
7. Validate critical backups and perform controlled restore tests before relying on the reconstructed repository.
8. Resume frequent physical backups, control-file autobackups, and scheduled logical exports of the catalog.

Catalog recovery, repository completeness, physical backup availability, and target-database recoverability are four separate results. A successful catalog connection establishes only the first. Operational recovery is complete when the repository is understood, required backup files are accessible and readable, and the documented target restore procedure has been tested.

Next lesson

After recovering or reconstructing the catalog, the next task is to determine what its metadata says about the protected database. In Lesson 4, you will use the RMAN REPORT command to analyze schema history, backup requirements, obsolescence, and unrecoverable changes.
